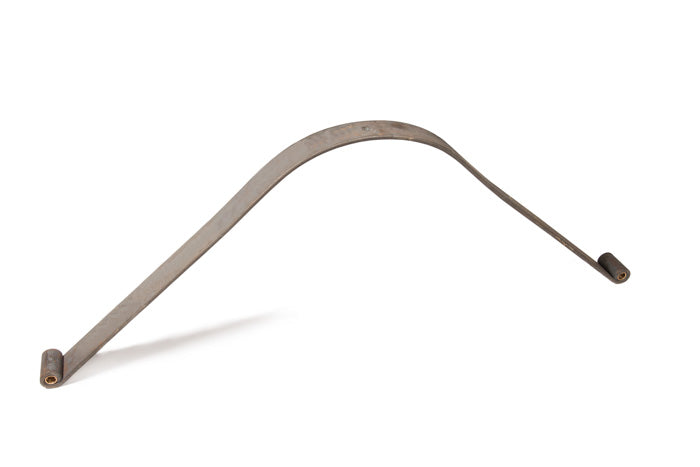

Model A Rear Main Leaf Spring Reversed Eye - Ford 1928-1931
Model A Rear Main Leaf Spring Reversed Eye - Ford 1928-1931 Model A Rear Main Leaf Spring Reversed Eye - Ford 1928-1931
Sold Out

Model A Rear Main Leaf Spring Reversed Eye - Ford 1928-1931

$ 159.99

This product is unavailable

DESCRIPTION

This Old Yankee Speed Company spring is a bolt in, additional 1" drop lowering application. Made in the USA of SAE 5160 rolled steel to Ford OEM measurements. Available with or without shackles and urethane bushings. For use with a complete spring pack.

DIMENSIONS

Overall Width: 41.5” inches eye to eye (Unsprung width can vary by +/- 1")
Overall Unsprung Height: 14.5” inches (Unsprung height can vary by +/- 1")
Spring leaf width 2.25” inches
Designed for 48" to 49" rear perch width



RESOURCES

Spring paint preparation instructions
