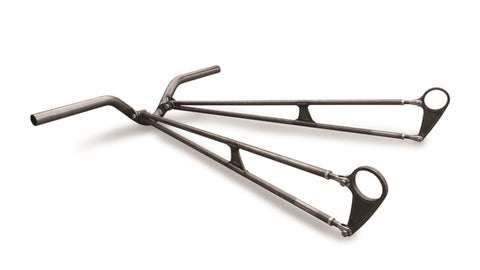

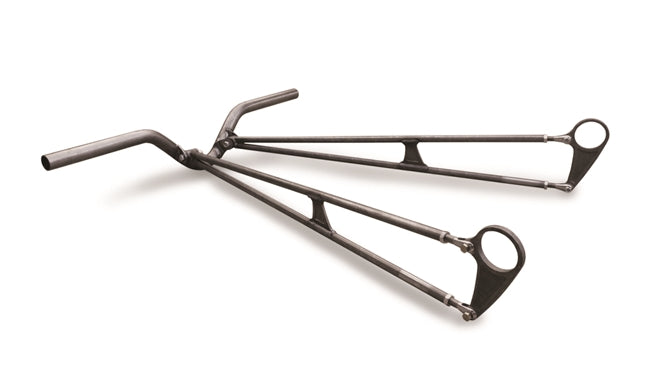

Rear Triangulated Ladder Bar Suspension Kit Steel

Rear Triangulated Ladder Bar Suspension Kit Steel

$ 549.99

PART NUMBER: RSC-54000



FEATURES:

Universal Application

Front Crossmember Width: 43 1/8" (Trim to desired width)
For Housing Diameter: 3"
Axle Center to Center of Front Mount: 45 1/2"

Originally designed for use on 1928 - 1934 Fords but now commonly used on all sorts of early hot rods, customs, and gassers. The front crossmember measures 43 1/8" wide and features a 5" drop leaving ample space for the drive shaft. Ladder bars use traditional style clevis adjusters. The easy to weld forged housing brackets have been carefully engineered to mount at an angle on a 3" rear housing and match the forged gussets in the ladder bars. Flame cut steel brackets for a 3 1/2" housing are available upon request. Contact our sales team for more information.

WHAT'S INCLUDED:

1 (ONE)
 Weld In Front X-Member 2 (TWO) Forged Steel 3" Housing Brackets
2 (TWO) Fabricated Ladder Bars With Forged Gussets 4 (FOUR) Front Bushing Halves
2 (TWO) Front Bushing Sleeves 4 (FOUR) 5/8" - 18 Clevis For 7/16" Bolt
4 (FOUR) 5/8"-18 Jam Nuts for Clevises 2 (TWO) Front Mounting Bolts With Nyloc Nuts
4 (FOUR) Clevis Mounting Bolts With Nyloc Nuts


NOTES & TIPS:

This kit is designed for professional builders only, and should only be installed by a qualified professional. Roadster Supply Company is not responsible for any suspension damage, or other damage, caused from improper installation.
