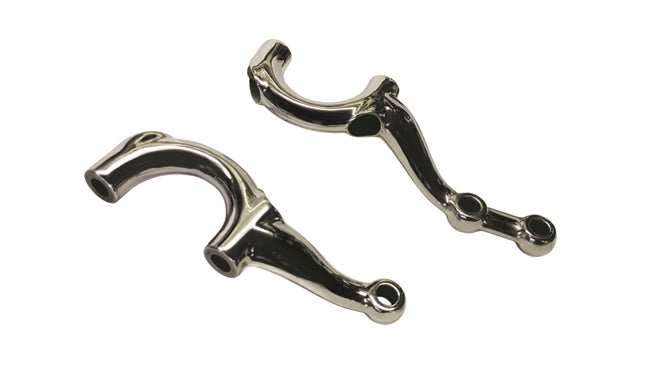

Thru Hole Spindle Steering Arms Stainless Steel

FEATURES:

For Use With 1937-1948 Ford Spindles

Mounting Center to Center Width: 3.300"
Tie Rod End Taper Angle: 7 Degree Tapered From Bottom Side

Thru hole steering arms offer increased safety over blind hole steering arms by allowing users to put a nylon lock nut or lock washer to secure their steering. The standard drop is most commonly used on 4" dropped axles with a hairpin radius rod or four bar front suspension. All American Hot Rod Parts' thru hole steering arms come with a 0.800" bolt head bore, ideal for 1/2" socket cap mounting bolts.


WHAT'S INCLUDED:

NOTES & TIPS:

See measurements in the Technical Specifications tab below to ensure this part will fit your application.

If using wishbones, we recommend running "deep drop" steering arms, also available on this store. Search for Deep Drop Steering Arms in the search box to learn more.

If using a 5" axle, we recommend running "5 inch drop" steering arms, also available on this store. Search for 5" Steering Arms in the search box to learn more.

Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
